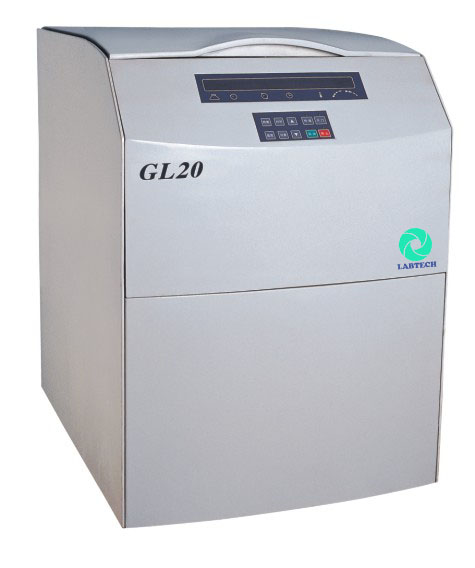

GL20C/GL20 Floor standing high speed refrigerated centrifuge

GL20C/GL20

Brand: LABTECH
Price per Unit (个): Call for Pricing

Short Description Max.capacity:6x100ml,Max.speed:20000r/min; Max.RCF:26660xg; Microprocessor control, brushless motor,LCD & digital display for option, Over speed and imbalance protection; floor-standing high speed refrigerated centrifuge


Product Description

Features:

  1. GL20C use the frequency brushless motor, GL20 use the brushless DC motor, no carbon dust pollution, unnecessary to maintain,
  2. Microprocessor control, digital display for GL20 and LCD display for GL20C, which indicates the speed, time, RCF in operation, speed rising and reducing quick, operate simply.
  3. Automatic rotor identification function.
  4. Electronic lock, the lid can open in order to protect the operator in operation.
  5. Over speed and imbalance protection, the centrifuge will stop automatically when the above situation happened.
  6. 3 tiers protection steel cover, 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice, safe and reliable.

Technical parameters:

Max speed

20000r/min

Temperature range

-20~40℃

Noise

≦58dBA

Max RCF

26660xg

Temperature accuracy

±2℃

Dimension

685x540x820mm

Rotor identification

Automatic identification

Speed accuracy

±50r/min

Capacity

6x100ml

Weight

170kg

Time range

0~99min

Power

AC220V/110V, 50HZ/60HZ, 10A



Available rotors for GL20C, GL20

No.

Rotor

Max speed (rpm)

Max capacity(ml)

Max RCF(xg)

1

Angle rotor

20000

12*1.5/2ml

25430

2

Angle rotor

15000

40*0.5ml

22920

3

Angle rotor

17000

24*1.5/2ml

26460

4

Angle rotor

13500

30*1.5/2ml

19340

5

Angle rotor

16000

16*5ml

22020

6

Angle rotor

16000

12*7ml

21380

7

Angle rotor

10000

12*15ml

11840

8

Angle rotor

15000

12*10ml

22680

9

Angle rotor

15000

8*20ml

22680

10

Angle rotor

14000

6*30ml

19060

11

Angle rotor

12000

6*50ml

16050

12

Angle rotor

12000

6*70ml

15570

13

Angle rotor

12000

4*100ml

14850

14

Angle rotor

10000

6*100ml

11380

15

Angle rotor

16000

6*10ml

21500

16

Angle rotor

18000

30*0.5ml

26660

17

Angle rotor

5000

30*15ml

3830

18

Angle rotor

4000

24*50ml

2970

19

Angle rotor

4000

12*100ml

2970

20

Angle rotor

13000

48*1.5/2ml

17930

21

Swing rotor

15000

4*5ml

19920

22

Vertical rotor

16000

16*5ml

16540

23

Plate bucket

4000

2*3*48holes

2300

24

Swing rotor

5000

4*50ml

4730

4*100ml

25

Swing rotor

4000

8*100ml

3020

8*50ml

3200

16*15ml

3200

24*15ml

3200

32*15ml

3200

48*7ml

2880

32*10ml

2790

24*10ml

2790

16*10ml

2790

26

Swing rotor

4000

2*750(500ml bottle)

3380

27

Swing rotor round cup

4000

4*750(500ml bottle)

3380

Swing rotor elliptic cup

4*500ml

28

Swing rotor

4000

4*250ml

2920

29

Swing rotor

4000

4*500

3310

30

Swing rotor

4000

88*5ml

2840

124*5ml

31

Swing rotor

4000

88*7ml

3140

124*7ml

32

Plate bucket

4000

2*4*96holes

2490

33

Plate bucket

4000

4*4*96holes

2840
