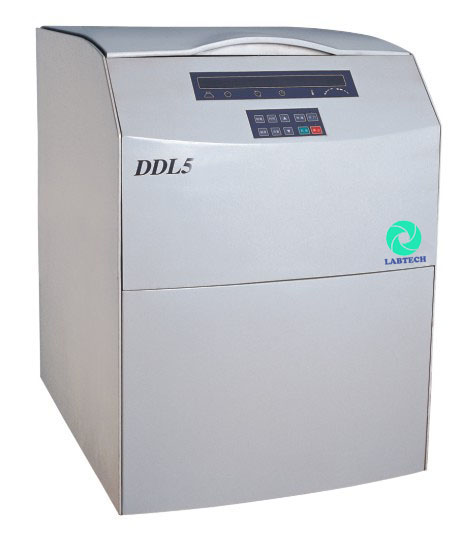

DDL5 Floor standing large capacity refrigerated centrifuge

DDL5/DDL5M/DDL5MC

Brand: LABTECH
Price per Unit (unit): Call for Pricing

Short Description Max.capacity:4x750ml; Max.speed:5000rpm; Max.RCF:4730xg Brushless motor,Microprocessor control, LCD & digital display for option, Electronic lock,Over speed and imbalance protection,10 kinds of programs stored; large capacity refrigeraed centrifuge, floor


Product Description


Features:
  1. DDL5 use DC brushless motor,DDL5M and DDL5MC use the frequency brushless motor, no carbon dust pollution, unnecessary to maintain,
  2. Microprocessor control, DDL5MC LCD display,DDL5 and DDL5M digital display which indicates the speed, time, RCF in operation, speed raising and reducing quick, operate simply.
  3. Automatic rotor identification function.
  4. Electronic lock, the lid can open in order to protect the operator in operation.
  5. Over speed and imbalance protection, the centrifuge will stop automatically when the above situation happened.
  6. 3 tiers protection steel cover, 10 kinds of program stored in the memory, 10 kinds of accelerating and decelerating speed for your choice, safe and reliable.

Technical parameters:

Max speed

5000r/min

Temperature range

-20~40℃

Noise

≦60dBA

Max RCF

4730xg

Temperature accuracy

±1℃

Dimension

685x540x820mm

Rotor identification

Automatic identification

Speed accuracy

±20r/min

Capacity

4x750ml

Weight

170kg

Time range

0~99min

Power

AC220V/110V, 50HZ/60HZ,15A



Rotors for centrifuge DDL5/DDL5M/DDL5MC

No.

Rotor

Max speed r/min

Capacity ml

Max RCF xg

1

Swing rotor

4000

2x750(500ml bottle)

3380

2

Swing rotor round cup

4000

4x750(500ml bottle)

3380

Swing rotor elliptic cup

4x500ml

3940

3

Swing rotor

4000

4x250

2920

4

Swing

4000

88x5vacuum tube

2840

124x5vacuum tube

5

Swing

4000

88x7vacuum tube

3140

124x7vacuum tube

6

Plate bucket

4000

2x4x96holes

2490

7

Plate bucket

4000

4x4x96holes

2840

8

Plate bucket

4000

2x3x48holes

2300

9

Swing rotor cubic cup

4000

4x500ml

3310

10

Fixed rotor

5000

30x15ml

3830

11

Fixed rotor

5000

6x15ml

2540

12

Fixed rotor

5000

12x15ml

3080

13

Fixed rotor

5000

24x15ml

3500

14

Fixed rotor

5000

4x50ml

2520

15

Fixed rotor

5000

6x50ml

2850

16

Fixed rotor

5000

12x50ml

3860

17

Fixed rotor

4000

24x50ml

2970

18

Fixed rotor

5000

4x100ml

2630

19

Fixed rotor

5000

6x100ml

3130

20

Fixed rotor

4000

12x100ml

2970

21

Swing rotor

5000

4x50ml

4730

4x100ml

22

Swing rotor

4000

8x100ml

3020

8x50ml

3200

16x15ml

3200

24x15ml

3200

32x15ml

3200

48x7ml

2880

32x10ml

2790

24x10ml

2790

16x10ml

2790
